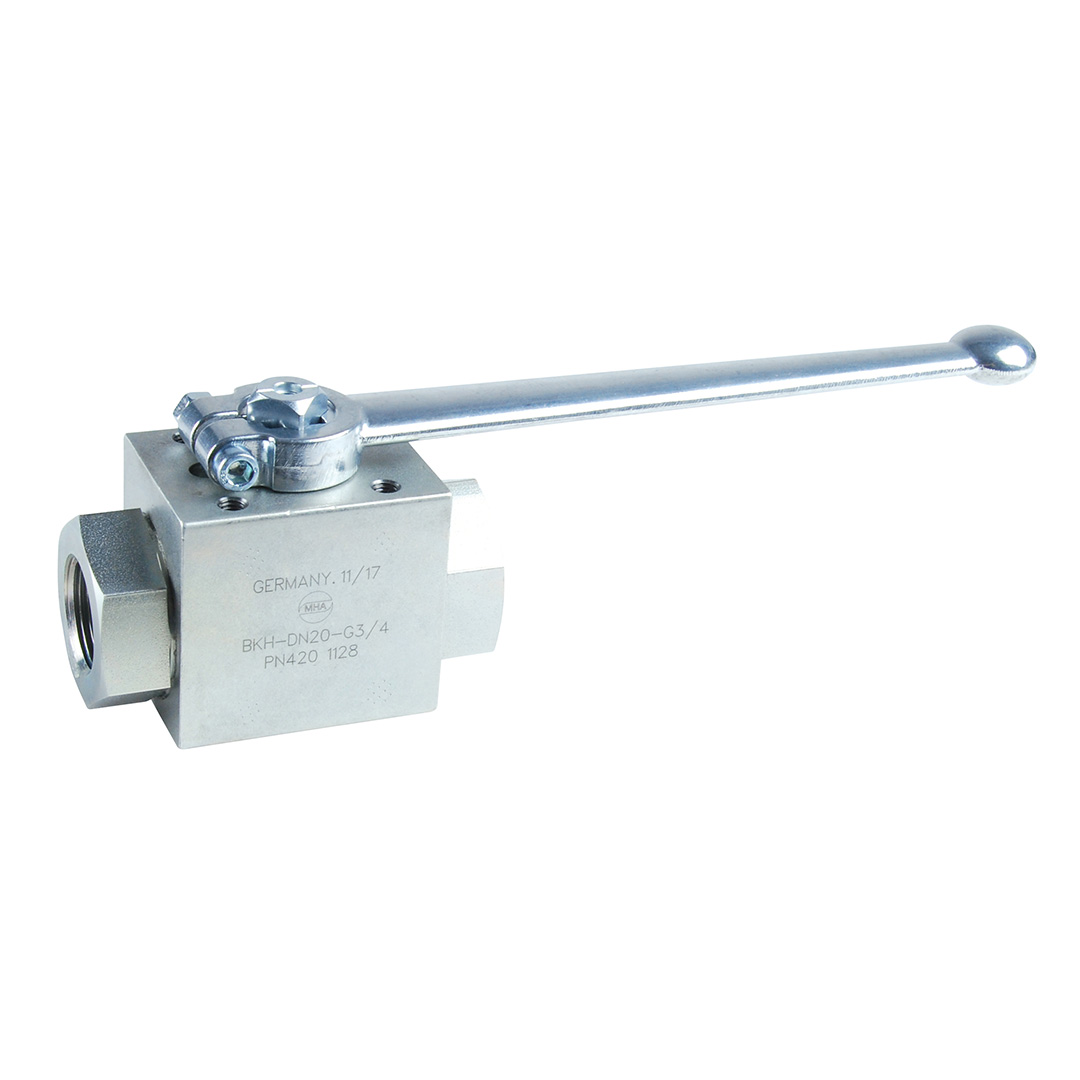

The 799 ZA series is a robust 2-way carbon steel ball valve. Featuring a 1.0715 body & ball, 1-piece construction, and high-pressure capability from 500 to 315 bar. Equipped with POM ball seats, FKM stem tightness, and an ISO pad.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Shaft/stem matérial | Carbon steel 1.0715 |
| ATEX compatible | Yes |
| DN | DN10 - 3/8'' |
| Face to Face (mm) | 72.0 |
| Body material | Carbon steel S250 |
| PS (bar) | 500 |
| Connections | BSP FF |
| TS max (°C) | 100 |
| TS min (°C) | -20 |
| Warranty period | 1 year |
| CE | Risk category III |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Carbon steel S250 DN10 - 3/8'' | 273201 | S1008030 |
€34.06
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 DN15 - 1/2'' | 273202 | S1008031 |
€35.47
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 DN20 - 3/4'' | 273203 | S1008032 |
€71.37
(excl. btw)
|
add to cart |
| BSP FF Carbon steel S250 DN25 - 1'' | 273204 | S1008033 |
€89.03
(excl. btw)
|
add to cart |
